Continuity Processing

Continuity Processing

Module: Continuity Processing
Path: Processing > Processing > Continuity Processing
Topic: Continuity Processing
Version(s):  5.1 & up
Editions: All


What Is Continuity Processing?

Continuity (you may use the term autoship, subscription, or club) is a type of order that creates automatically in the system without the customers having to contact you with the request. Continuity items are created via import or from the Product Offer or Continuity Sequence screens.

The Continuity Processing page is where you can create (manually or via scheduled job) and preview continuity orders.



Making The Connection

Where Will I See This Within OLX?

Once the continuity offers are created in the system and sold to customers, you will see Customer Records that have information listed under Subscription Information

What Reports Can Be Pulled?

  1. Continuity Projection Report Definitions (orderlogix.com)
  2. Continuity Customer List Report Definitions (orderlogix.com)
  3. Continuity Status Report Definitions (orderlogix.com)
  4. Continuity Retention Analysis Report Definitions (orderlogix.com)
  5. Continuity Retention Report Definitions (orderlogix.com)
  6. Continuity Configuration Report Definitions (orderlogix.com)
  7. Installment Receivables Report Definitions (orderlogix.com)

What Imports/Exports Relate to Continuity Processing?

  1. OLX Autoship Sequence Import Spec (orderlogix.com)

Trouble Shooting

  1. Continuity Sequence did not create on Customer Record

    1. Check the method of payment
      1. continuity orders will only create if payment method is credit card
        1. there is a system preference setting that if checked will allow continuity to create for telecheck orders
    2. Check the Product Offer to confirm Continuity has been setup.
      1. If Continuity shows on Continuity tab, edit record and confirm Sequence has been created.
  2. Continuity Order isn't creating for customer.

    1. Check the following:
      1. outstanding item settings on Continuity job
      2. item status of last created order
          1. Stop autoship if items are cancelled status.
            Stop autoship if items are shipment cancelled status
            Stop autoship if items are fatal auth status
      3. next ship date on sequence
      4. continuity settings


Setup

Tool Bar

Utilizing the buttons on the tool bar   you can:
Go back to the previous screen
Print
Minimize module

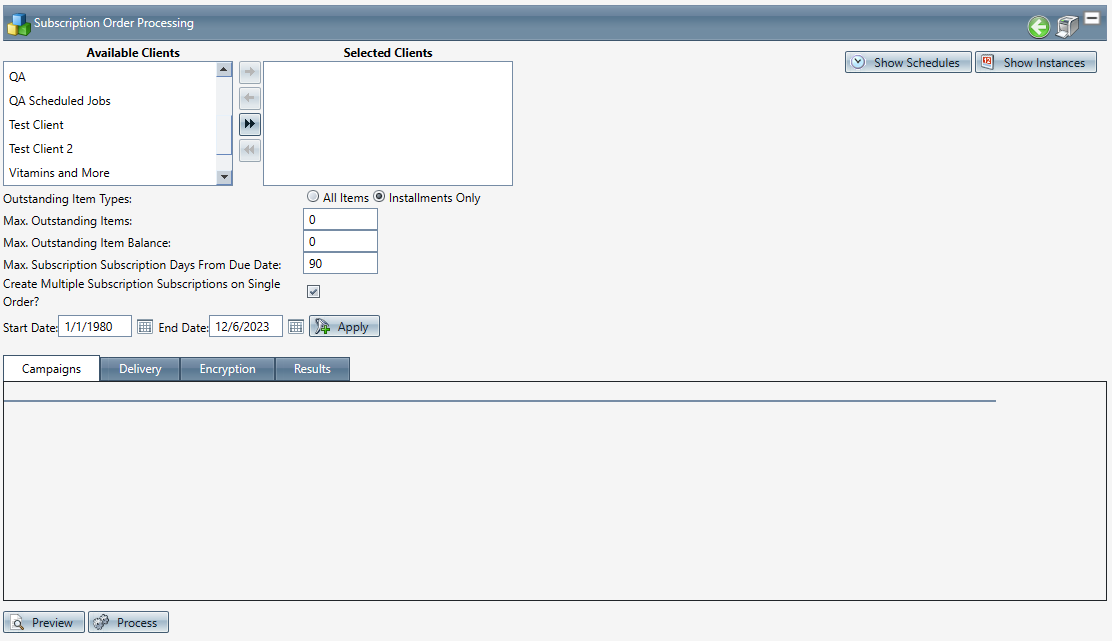

Settings


  1. Select Available Clients for the Continuity Processing from the list.
    1. Client selected will filter to show only campaigns associated with that specific client.
    2. Campaign selection is based off initial (base) order that started the continuity.
  2. Outstanding Item Types: Based on the selection, item type is used in the process to determine item eligibility.
    Alert
    **Dependent setting for steps 3 & 4 below
    1. All
    2. Installment - will only look at installment items that have not completed payment processing for any reason.
    3. Continuity - will only look at continuity items that have not completed payment processing for any reason.
  3. Enter the maximum number of outstanding installment items.
    Alert
    **Filtered by outstanding item type selected above in step 2
    1. How many line items, based on type set in step 2, on the Continuity sequence from previous orders that did not receive a successful payment transaction.
    2. Orders that have more than the allowed number of line items that have not processed payment successfully will not be eligible to create the next continuity order.
  4. Enter the maximum Item Installment Balance.
    Alert
    **Filtered by outstanding item type selected above in step 2
    1. Balance due of items due on prior order(s) – if balance owed by customer is more than what is set here the next continuity order will not create.
      1. Item status of item cancelled should not hold next order due to balance zeroing out on order.
      2. Item status of declined, fatal, invalid will hold balance on order detail.
  5. Enter the maximum Continuity days from the due date.
    1. This looks at next ship date of continuities that need to be created.
    2. plus (+) or minus (–) from date of job running.
      1. Will not go past start/end date set below.
  6. Create Multiple Continuity on Single Order
    1. Customers that have multiple continuities may or may not need each sequence to participate in payment and shipment processing separately.
    2. Checked - All continuities will create on one order, per customer.
      1. this is based on customer record, not shipping address
    3. Unchecked - All continuities will create on separate orders, per customer.
      1. this is based on customer record, not shipping address
  7. Select the Start and End Date for the continuities processing.
    1. The system will look for continuities that need created starting with Start Date up through End Date.
      1. Maximum Continuity Days from Due Date setting above will further filter the results.
        1. Start/End Date will not go past Maximum Continuity Days from Due Date setting
    2. You can run the Continuity Processing job for dates in the past and dates in the future.
  8. Click apply to view Continuity orders ready for processing.

Campaigns Tab

  1. Client - associated to base/initial order
  2. Campaign - associated to base/initial order
  3. # of Orders - number of available individual sequences to create. If using Create Multiple Continuity Subscriptions on Single Order? this number could be smaller when job runs.
  4. $ Revenue - this does not include any tax that may be added to the order during order creation.

  1. Select Records to create continuities:
    1. Check All to select all available records.
    2. Uncheck All to deselect all available records.
    3. Select each individually.
  2. Click the Preview button  to view the orders ready for Continuity.
    1. A Continuity Order Creation (Preview Mode) will appear.

Delivery Tab

  1. None - the job will only run within OLX and job history will only be available via Process History.

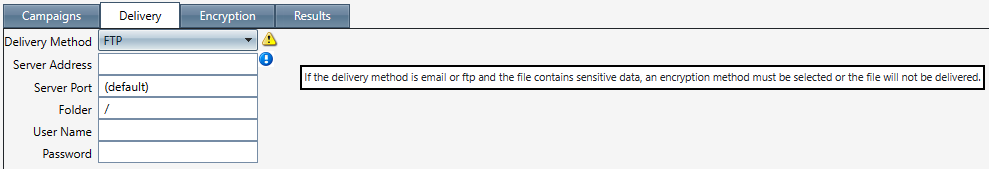

  2. FTP

    1.  if the delivery method is email of ftp and the file contains sensitive data, an encryption method must be selected, or the file will not be delivered.
    2. Server Address - This is the host name of the server where files will be collected from. An IP address can also be used.
    3.  allows you to test connection from the system to the Server address provided
    4. Server Port - This indicates the specific FTP/SFTP port to use. This is an advanced feature and should be left at (default) unless the FTP operator indicates that it should be something different.
    5. Folder - This indicates the relative folder on the remote server where the files should be gathered from. If this is unknown, the default of “/” should be used.
    6. Username - This is the username for the remote server.
    7. Password - This is the password for the remote server.

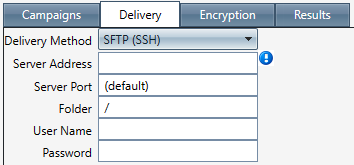

  3. SFTP (SSH)

    1. Server Address - This is the host name of the server where files will be collected from. An IP address can also be used.
    2.  allows you to test connection from the system to the Server address provided
    3. Server Port - This indicates the specific FTP/SFTP port to use. This is an advanced feature and should be left at (default) unless the FTP operator indicates that it should be something different.
    4. Folder - This indicates the relative folder on the remote server where the files should be gathered from. If this is unknown, the default of “/” should be used.
    5. Username - This is the username for the remote server.
    6. Password - This is the password for the remote server.

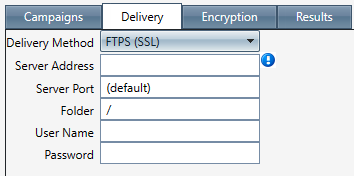

  4. FTPS (SSL)

    1. Server Address - This is the host name of the server where files will be collected from. An IP address can also be used.
    2.   allows you to test connection from the system to the Server address provided
    3. Server Port - This indicates the specific FTP/SFTP port to use. This is an advanced feature and should be left at (default) unless the FTP operator indicates that it should be something different.
    4. Folder - This indicates the relative folder on the remote server where the files should be gathered from. If this is unknown, the default of “/” should be used.
    5. Username - This is the username for the remote server.
    6. Password - This is the password for the remote server.

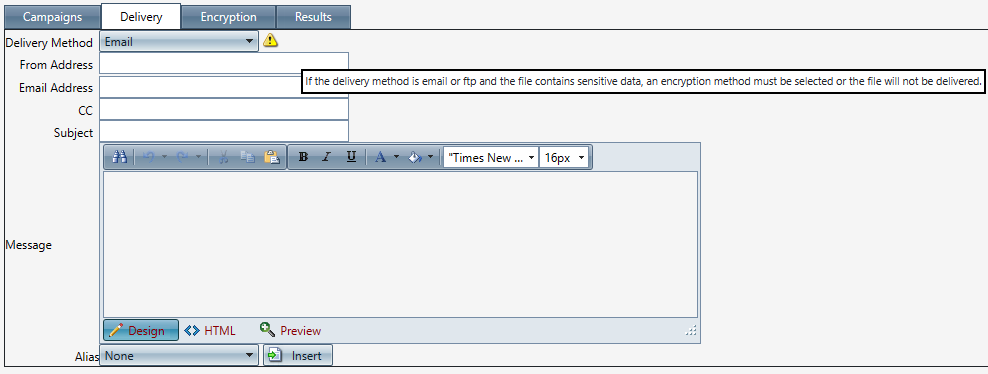

  5. Email
    1.  if the delivery method is email of ftp and the file contains sensitive data, an encryption method must be selected, or the file will not be delivered.
    2. From Address
    3. Email Address
    4.  allows you to test connection from the system to the email address provided
    5. CC
    6. Subject
    7. Message
    8. Alias

      1. None
      2. EndTime
      3. JobLog
      4. JobName
      5. JobStatus
      6. OrderCount
      7. RevenueTotal
      8. StartTime
      9. TaxTotal

Encryption Tab

  1. None
    1. no decryption method will be used

    2. File Name - Name of file created from job and sent to option set on Delivery tab.

  2. Zip

    1. File Name - Name of file created from job and sent to option set on Delivery tab.
    2. File Password entered here is the password needed to unzip the file and pull the information into the external system.
    3. Confirm Password entered above.
  3. PGP

    1. File Name - Name of file created from job and sent to option set on Delivery tab.
    2. PGP Key Option - select the PGP from the drop down.

Results Tab


  1. You can click on the Customer Name to access the Customer Detail screen.
  2. Click Process to process the Continuity's.
    1. The Continuity Order Creation window will appear.


  1. Click Print to print the Continuity Processing Screen.
Alert
The Print page is a read only view. Hyperlinks normally seen from customer detail page will not work on the Print page.


Continuity Processing
Copyright 2019
Revised 7.22.2024
