Station List Report Definitions

Station List Report Definitions

Info
Module: Reports
Path: Reports > Media Reports > Station List Report
Topic: Station List Report
Version(s):  5.1 and up
Editions: Call Center

What Is Station List Report

This report shows the list of Stations entered into OLX and the information pertaining to them.

Making The Connection

Where Will I See This Within OLX?

Stations are setup via Campaigns > Media > Stations

What Imports/Exports Relate to Station List Report?

  1. OLX Station Import Spec

Setup

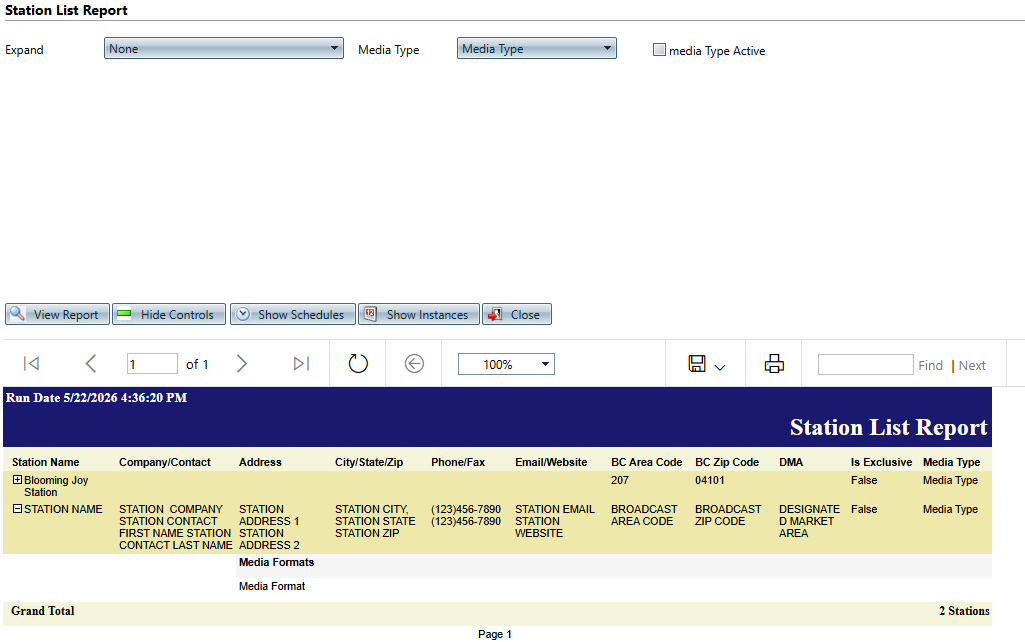

Preview




You'll notice control buttons displayed just above the results. Review Report Tools (orderlogix.com) article for more information on how to utilize each control button. :
  1. View Report  - Displays results
    1. Displays the toolbar
  2. Hide Controls - Hides report filters
    1. Show Controls - Displays report filters
  3. Show Schedules  - Displays schedule editor
    1. Format filter will display at top of screen
    2. Delivery and Encryption tabs will display on bottom left of screen
  4. Show Instances - Displays list of previously ran and pending reports. Click on the status to review the job log.
  5. Close  - Close out of the report popup.

Report Definitions

Using Calendar Icon to Set Date(s) is a good article to review when running reports manually or scheduling for automation.

Filters

Filter
Definition
Expand
  1. None
    1. will not expand any of the selected groupings and only show the first layer of the Groupings set in Report Layout
  2. One
    1. will expand only the first Grouping to display the first and second layer of the Groupings set in Report Layout
  3. Two
    1. will expand all Groupings to display all layers of the Groupings set in Report Layout
Format
  1. This is the format that the report will export in:
    1. PDF
    2. Excel
    3. CSV
Media Type
The media type of the station
media Type Active
  1. Checked
  2. Unchecked



 Column Definitions

Column
Definition
Station Name
The name of the Station
Company/Contact
The company and contact person of the Station
Address
The address of the Station
City/State/Zip
The city, state and zip code of the Station
Phone/Fax
The phone and fax number of the Station
Email/Website
The email and website of the Station
BC Area Code
The broadcast area code of the Station
BC Zip Code
The broadcast zip code of the Station
DMA
The designated market area of the Station
Is Exclusive
Whether or not the Station is exclusive
Media Type
The Media Type of the Station
Media Formats
List of Media Formats attached to the Station
