Module: Payment Processor

Topic: Mercado Pago Payment Processor

Version(s): All

Editions:  All

---

What is Mercado Pago

Mercado Pago is a payment gateway. Mercado Pago is more complex than some of the other payment gateways you may have used in the past (Stripe for instance). Mercado Pago allows for extended scheduled payments as well as offline (customer can go to a physical location) payments to be made.

Processing Steps

1. OLX will send details to Mercado Pago in order to create a customer record.

2. Mercado Pago will send back a customer id so that payment information can be transmitted from one system to the other.


Payment Methods

Oxxo

1. Confirmation number is given

2. Go to Oxxo (Chain of convenient stores)

3. Give confirmation number with payment

4. Oxxo enters payment with confirmation number
5. Mercado Pago backend updated automatically

6. Once showed as paid order will ship


Banamex

1. Confirmation number is given

2. Go to Bank ATM
3. Give confirmation number with payment

4. Mercado Pago backend updated automatically
5. Once showed as paid order will ship

Bancomer

1. Confirmation number is given

2. Go to Bank ATM
3. Give confirmation number with payment

4. Mercado Pago backend updated automatically
5. Once showed as paid order will ship

Credit Card - Tokenization

1. Mercado Pago payment gateway works with tokenization.

2. Payment set - token pending prior to real time authorization

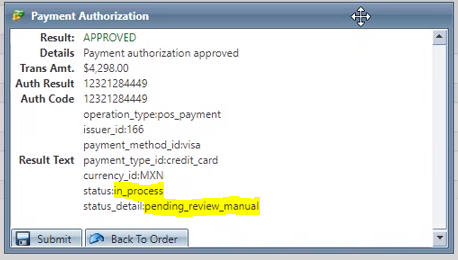

Pending Approval Pre-Authorization

1. Result will say approved

2. Auth Code will contain:

1. operation_type to denote if point of sale payment or another payment type
2. issuer_id to denote who (bank who is extending credit) is responsible for receiving payment transactions

3. payment_method_id to denote what type of credit card was used

3. Result Text will contain:

1. payment_type_id to denote that is is a credit card or debit card

2. status will say in process due to status_detail
3. status_detail to denote pending review manual that means Mercado Pago system will analyze risk and approve or not approve

1. Order will be saved in OLX as Item Awaiting Authorization

2. Mercado Pago has a backend site where they review orders and approve or reject

Approved Pre-Authorization and Orders

1. OLX receives a one time token from Mercado Pago.

1. This single use token allows items attached to it to be refunded (partial and full) as well as payments captured.

2. New items can NOT be added to an existing token.
2. The Mercado Pago payment gateway will use the set token for installments.

1. Customer Service will be prompted to select an installment plan from available installments listed when processing payments.

2. Once the customer has agreed to an installment schedule it can not be edited at a later date.
3. The auth does expire and again is a single use, items can not be added to it.
4. The following is a break down of the parts of the token that is received via Mercado Pago:
   Token = xxx|xxx,xxxx,xxxx
   ( Mercado Pago's customer ID | Mercado Pago card ID , one time token given by Mercado , last 4 digits of cc )
5. Credit card information for orders utilizing Mercado Pago's payment gateway is not stored within OLX.
